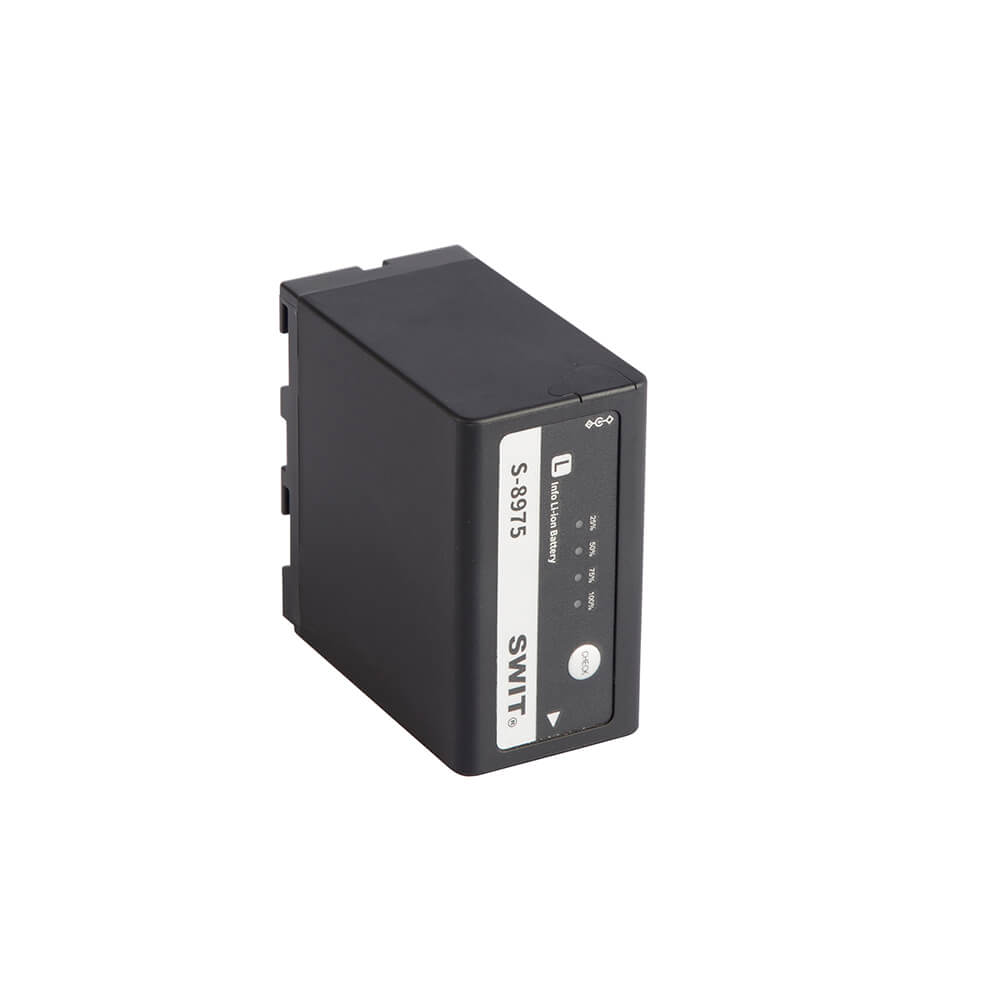

S-8975 SONY L Series DV Camcorder Battery Pack

• 7.2V nominal voltage Li-ion battery
• Comparable to SONY L series
• Display remaining power info on camera viewfinder
• 75Wh / 10.4Ah capacity
• 4-level LED power indicator
• 7.2V Pole-tap DC output
• Multiple circuit protections

Display remaining power info
S-8975 is the replacement battery for SONY NP-F970, compatible with SONY HVR-V1/Z1/Z7, DSR-PD190, HD1000E, etc. S-8975 can exchange digital info with the cameras, and display remaining power info on the camera viewfinder.

75Wh / 10.4Ah High Capacity
With 7.2V nominal voltage, the S-8975 has 75Wh / 10.4Ah capacity.

Build-in D-tap DC Output Socket
A 5.5/2.1mm pole-tap DC output socket is equipped on the side of S-8975 battery, for DC 7.2V (Nominate) connection. You can connect on-camera LED light, monitor or wireless transmitter on the pole-tap socket, and get power simulta- neously with camera.
The Max power from the pole-tap is 30W, 4A

4-level LED Power Indicator
The S-8975 battery has the 4-level LED power indicators to check
the battery remaining capacity. You can get a quick view of capacity before using.

Easy Charging
The S-8975 can be charged on SWIT Dual channel charger S-3602F or 4-ch charger LC-D421. It takes about 5 hours and 50 minutes to charge from empty to 100%.

Specifications
Nominal Voltage 7.2V
Capacity 75Wh, 10.4Ah
Max output power
Total: 30W, 4A
Pins: 30W, 4A
Pole-tap: 30W, 4A
Compatible cameras
SONY HVR-Z1/Z5/Z7/V1;
SONY DSR-PD150/170/190;
SONY NEX-FS100/700/EA50;
SONY NXR-MC2000/HD1000;
Dimension 71×39×70mm
Net weight Approx 334g
