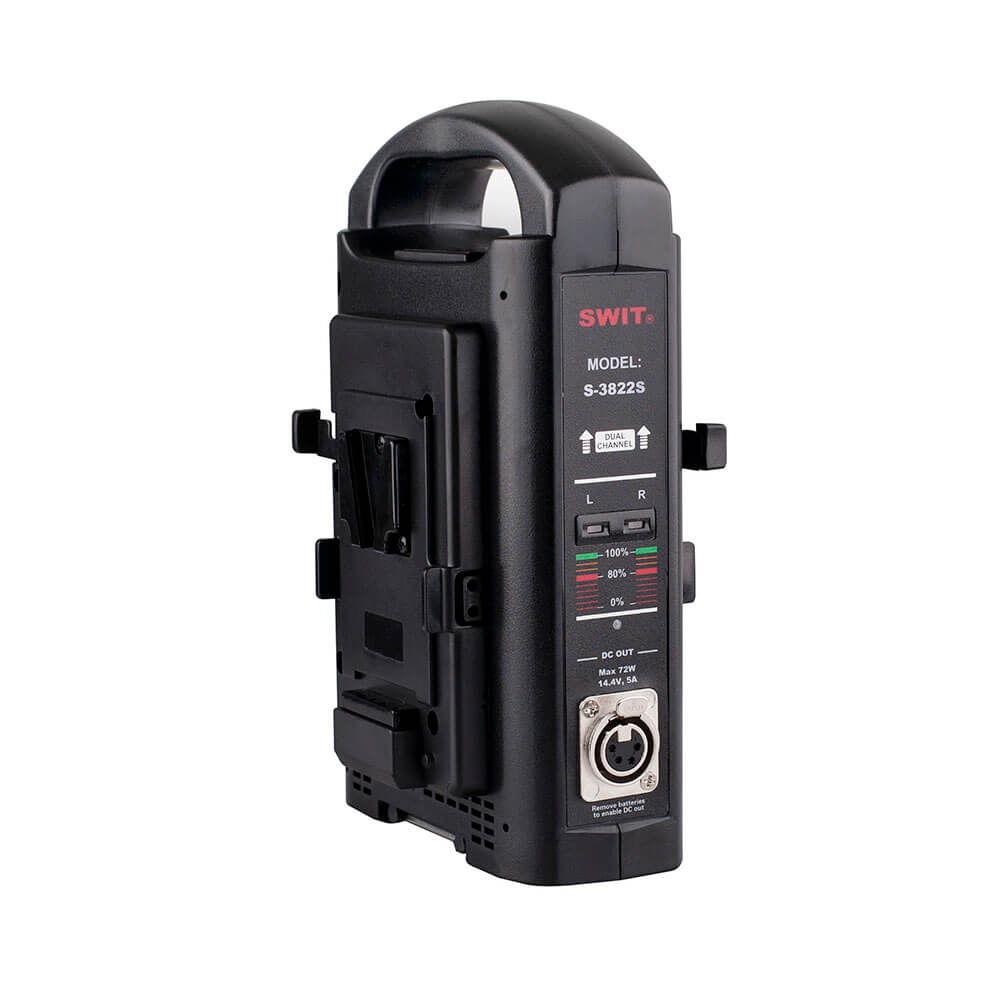

S-3822S 2-ch V-mount Fast Charger

• Charging V-mount batteries
• 2-ch simultaneous charging
• 3A charging current per channel
• LED charging indicators
• Support AC to 4-pin XLR output
• Light weight and portable

Charging current: 3A per channel
The portable charger S-3822S can charge 2 V-mount batteries simulta- neously. The charging output is DC 16.8V, 3A×2

LED Charging Indicators
S-3822S has LED charging indicators on the front panel, indicates the real time capacity of each channel by different colors:
Display Red: Battery is charging, capacity below 80%;
Display Yellow: Battery is charging, capacity above 80%;
Display Green: Charging finished

AC-DC Adapting Output
S-3822S has a 4-pin XLR female connector on the front panel. Connected with SWIT S-7102 XLR female to male cable (optional purchase), the S-3822S can be used as AC-DC adaptor of DC 15V, 6A, 90W output.
Please note the AC-DC adapting output will not work when battery is charging.

Specifications:
Input 100-240VA, 50/60Hz
Power consumption Max 136W
Charging output DC 16.8V, 3A×2-ch
Adapting output DC 15V, 6A
Working temperature 0°C-+40°C
Working humidity 10%-90%
Dimensions 228mm×140mm×120mm
Net weight Approx. 1.0kg
