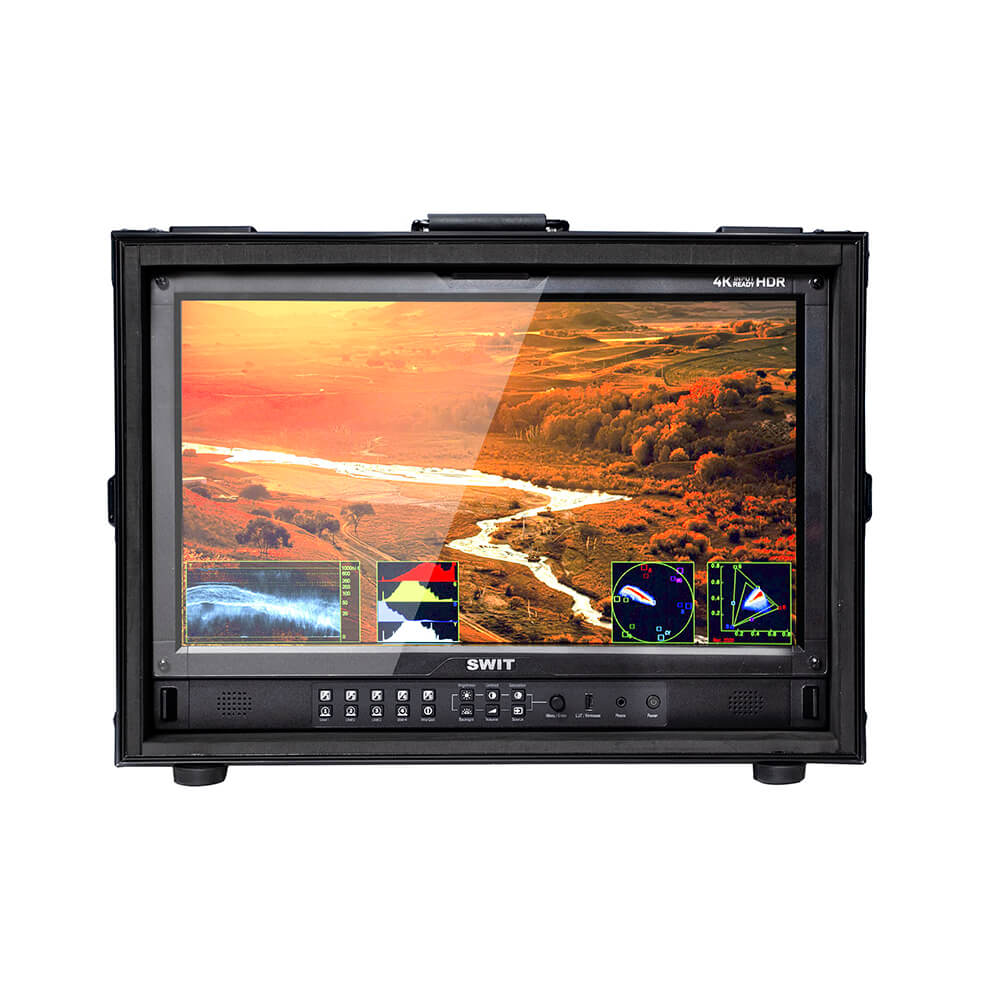

SWIT FM-215HDR 21.5” 1000nit HDR 4K Field Monitor

• 21.5-inch 1920×1080 QLED Panel
• 1000nits high bright PQ/HLG HDR
• 100% DCI-P3 wide color gamut coverage
• VICO 1.97 A-class Eye Protecting LCD
• 12G-SDI, 4x3G-SDI, HDMI®2.0 4K input
• 4-ch SDI/HDMI® mixed formats multiview
• Any 2 inputs mixed PBP or PIP view
• Horizontal and Vertical (cropped) PBP view
• Zero latency video processing (0.01frame)
• 3DLUT Auto Self-calibration without PC
• Built-in Multi camera Delog LUTs
• User 3DLUTs upload via USB
• Waveform / Focus assist / False color / Zebra
• With flight case and screen protector
• Optional VESA to C-stand adaptor

The monitor is equipped with an advanced Quantum Dot LED (QLED) panel of 1000nits high bright backlight, outdoor sunlight viewable, and support PQ/HLG/S-log3 HDR monitoring.

Multiview Display Mode
Supports 4x input video of mixed formats quadview display, or any 2x inputs Pic-by-Pic or Pic-in-Pic view, and any 2x inputs vertical (Cropped) display mode. You can select HDR/SDR gamma, color gamut independently for each input.

H/V Multi-platform Livestreaming View
1× input source to display regular horizontal view and cropped vertical view side by side simultaneously, for multi-platform livestreaming productions.

Go with Flight Case
The FM-215HDR monitor is shipped with strong aluminium flight case, for all-around protections on filmset.

Equipped with Screen Protector
The FM-215HDR monitor provides an acrylic screen protector, with high transparency and anti-reflection.

2× Top Cheese Boards
On the top of the flight case, 2× cheese boards are provided to install accessories like wireless video receiver, with multiple 1/4” and 3/8” screw threads.

Optional VESA to C-stand Bracket
The monitor has standard 10×10 VESA mount, and provides VESA to 5/8” baby-pin C-stand / Light stand adaptor bracket. (Optional purchased accessory)

For more information, see the downloadable pdf file under the product media tab below.
