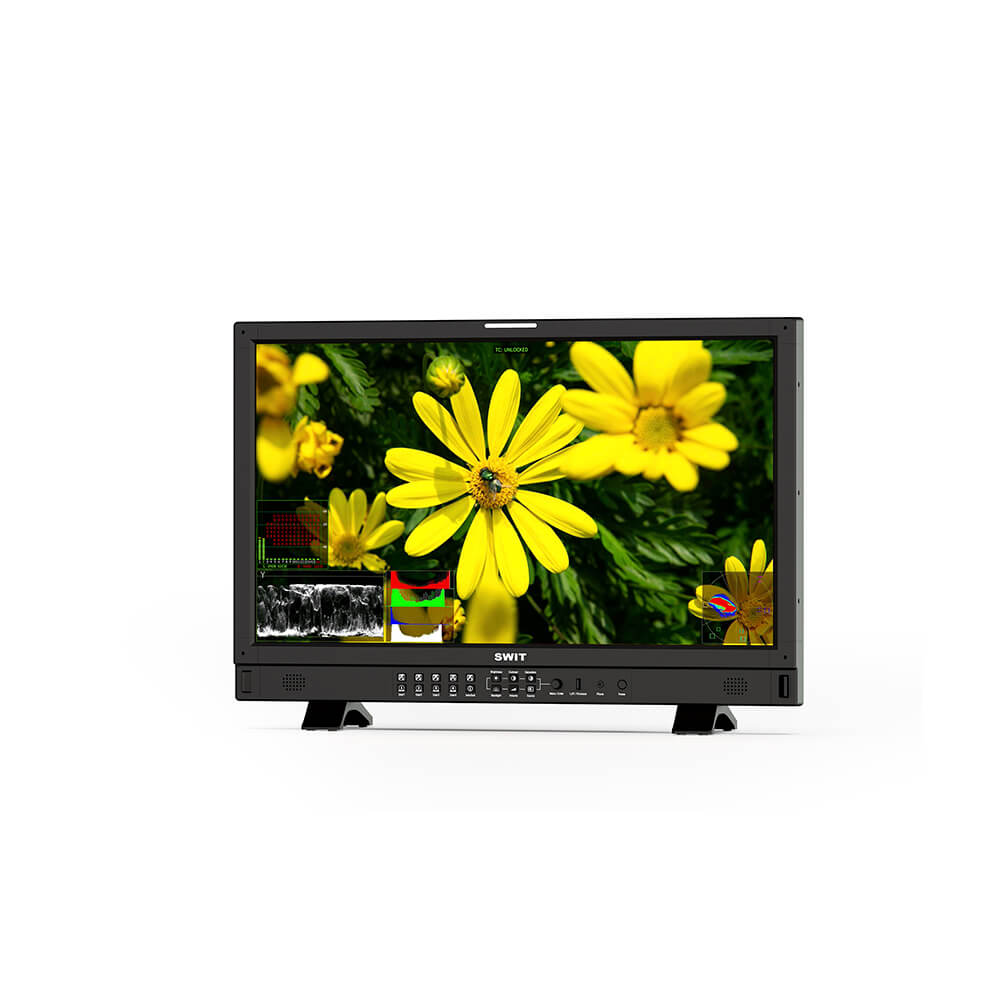

BM-U275HDR 27-inch 4K/8K 12GSDI HDR Studio Monitor

• 27-inch LCD Panel, 3840×2160 resolution
• 1000nits high bright LED backlight
• HLG/PQ/S-log3 HDR, Payload ID auto setting
• 12GSDI 4-in 4-out, 8K input ready, HDMI2.0 input
• 12GSDI via SFP Fiber input (Optional)
• ST2110 IP via SFP Fiber input (Optional)
• SFP Fiber 12G input converted to 12GSDI out
• 3DLUT Auto Self-calibration without PC
• Audio/Video 0 latency for lip-sync
• Built-in Multi camera Delog LUTs
• User 3DLUTs upload via USB
• Waveform / Vector / Histogram
• Focus assist / False color / Zebra
• 16-ch audio meters / Lissajous
• IP webserver remote control
• TSL UMD and text TALLY display
• USB firmware upgrade

BM-U275HDR adopts a 27-inch 10-bit LCD panel, UHD 3840×2160 resolution, 1000nits high bright LED backlight, 1000:1 contrast, 97.2% DCI-P3 color gamut. The viewing angle is H178° / V178°.

12GSDI 4-in 4-out, supports:
Single link 4K; Quad link 4K and Quad link 8K
HDMI 2.0 (4K60P)
12GSDI via SFP Fiber (Optional)
ST2110 IP via SFP Fiber (Optional)
* The Quadlink 4K/8K supports both Quad mode and 2SI interleave mode;
* The SFP optical fiber adaptor is optional purchased.

Supports Single link 4K input including 12GSDI, HDMI2.0 or 12GSDI via SFP, and Quad link 4x 3GSDI 4K or Quad link 4x 12GSDI 8K inputs.
You can also input 4x independent 4K videos to multiview, supports 12G/6G/3G/HD-SDI and HDMI 2.0/1.4/1.3 mixed formats input, and waveform, vector, audio meters, EOTF, color gamut selection for each input.

For more information, see the downloadable pdf under the product media tab below.
