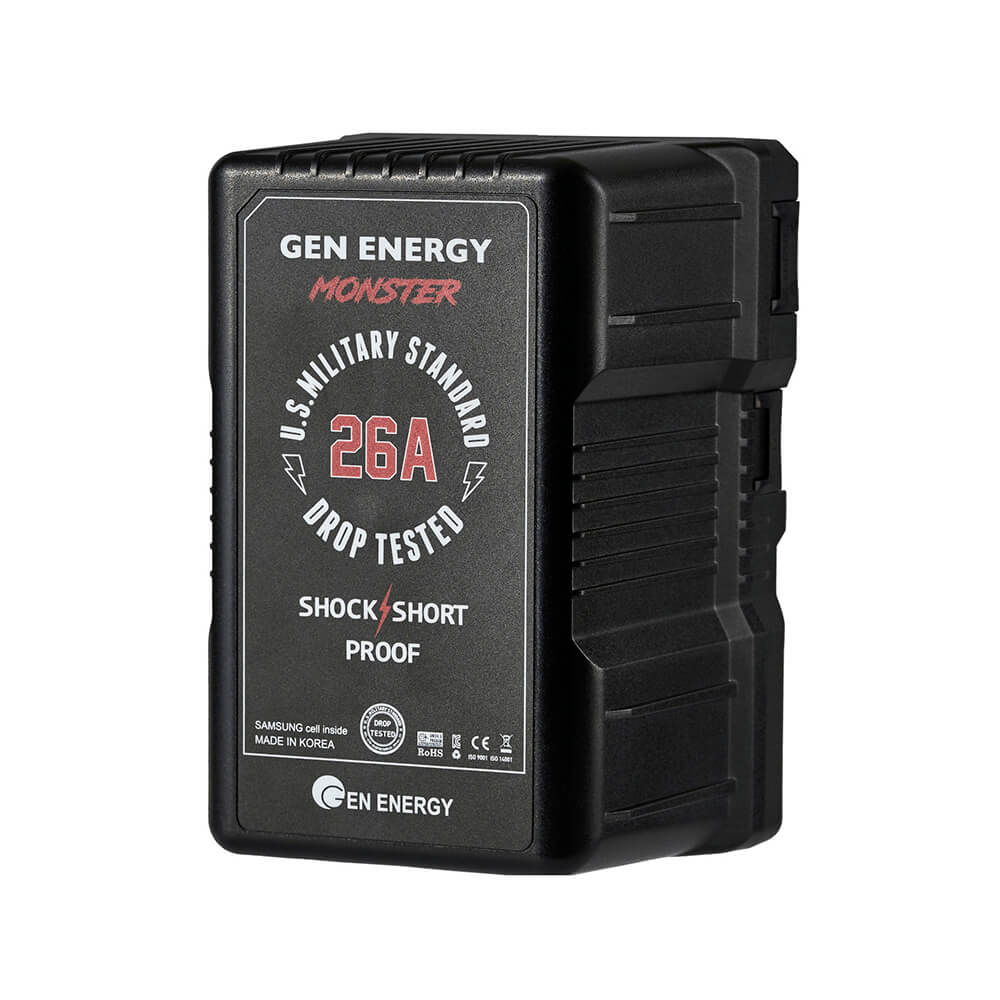

G-B100/390W 26A V-MOUNT BATTERY (390Wh)

• This battery has 26A Min. 312W, the biggest power in the world, which was born for ALEXA LF and Skypanel S60 full power working solution.
• You can use only 1 pc of 14.4V battery for ALEXA LF and 2 pcs of batteries for Skypanel S60.
• G-P26F plate is needed for ALEXA LF with this 1 battery.
• G-PB48 power bank is needed for Skypanel S60 with these 2 batteries.
• Shock-proof, Short-proof, Lowest impedance.

CHARGE

• Do not use the battery (Main, D-Tap, USB) while charging. If so, it may cause a charging error or damage the charger.
• Charge the battery to full before first use.
• When you charge this battery, Battery capacity LED gauge button will turn on indicating the capacity being charged.
• Lithium ion batteries have a slight self discharge, therefore it is recommended to charge prior to use.

DISCHARGE

• Do not use the battery (Main, D-Tap, USB) while charging. If so, it may cause a charging error or damage the charger.
• Camera's low voltage alarm is recommended to set 13V.
• Battery will stop at 12V to extend its life.
• * Microwave transmitters with 5W outputs or over should be kept as far away from the battery. It may disrupt or stop supplying power.
• Be sure to remove the battery from the device after use. If so, it will consume large standby power and over-discharge protection may be activated.
• USB is activated by pushing Battery capacity LED gauge button. USB power will turn on automatically 30 minute after no use.
• Battery run time reduces when it is working below or above the recommended temperature range.

Specifications:
TYPE V-MOUNT BATTERY
Cell chemistry Li-ion
Nominal voltage DC 14.4V
Capacity 27.2Ah (390Wh)
Charge voltage 16.8V
Charge current Max. 6A
Min. discharge power 26A ( 312W)
D-Tap Output nominal voltage : 14.4V
Min. Discharge power :12A (144W)
USB Output voltage : DC 5.0V
Max. load : 2.3A
Auto power off : 30 minutes after no use
End voltage 12V
Battery protection circuit Over-charge, Over-discharge, Over-current ( Cell and Pack separately), Over-temperature, Reverse charge
Ambient temperature To charge : 10°C ~ 30°C (32°F ~ 104°F recommended)
To discharge : -20°C ~ 50°C ( -4°F ~ 122°F), 10°C ~ 40°C (50°F ~104°F recommended)
To store : `-20°C ~ 40°C (-4°F ~ 104°F) (<85% RH) (less than 1 month)
Dimension 97(W) x 146(H) x 97(D)mm
3.82(W) x 5.75(H) x3.82(D)"
Weight approx. 2,000g / 4.4lbs
