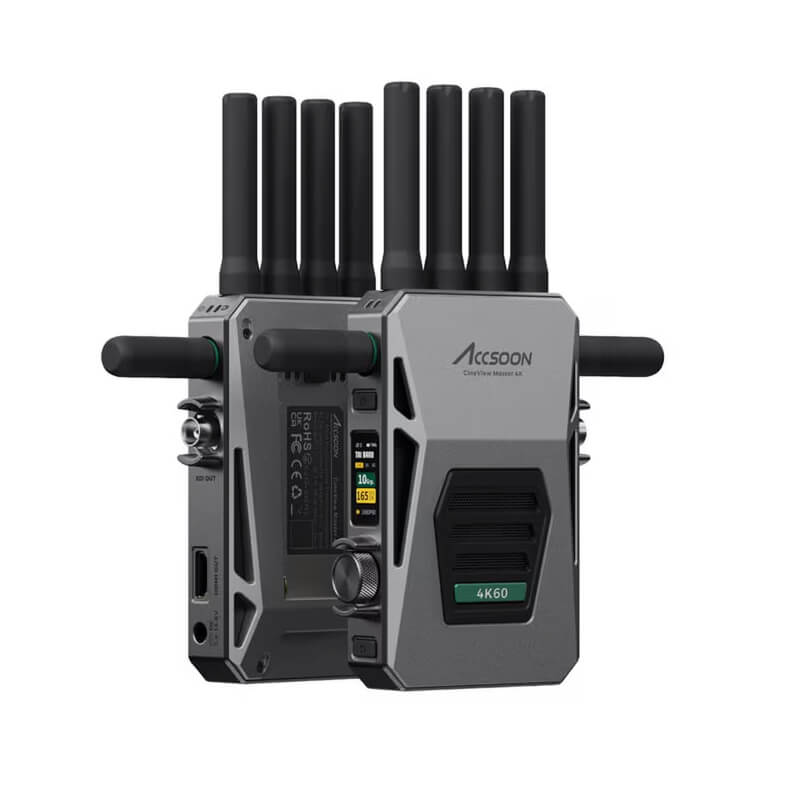

Accsoon CineView Master 4K 1TX and 1RX.

• End to End True 4K60 Transmission
• Tri-band (2.4GHz+5GHz+6GHz) + DFS WirelessTransmission
• 25ms Best in Class Latency
• 2.5km/1.5 miles Extended Long Transmission Range
• Monitoring on Up to 5 Devices
• Multiple Video Streams for Diverse Applications
• Convert SDI Input Signal on TX to HDMI Output Signalon RX [3]
• Convert HDMI Input Signal on TX to SDI Output Signalon RX
• RX: SDI and HDMI Output Simultaneously
• Monitoring on Accsoon SEE App
• 8K High Performance A/V Processor

The Accsoon CineView Master 4K wireless system is a groundbreaking innovation in the world of wireless video. It offers true 4K 60P transmission, with a tri-band (2.4GHz+5GHz+6GHz) and DFS wireless transmission, and a best-in-class latency of only 25ms. With an extended range of 2.5km/1.5 miles and the ability to monitor on up to 5 devices, this system is perfect for a variety of applications. The transmitter (TX) unit offers SDI and HDMI inputs, as well as an HDMI loop-out and MFi-certified USB video output to iPhone/iPad. The receiver (RX) unit can simultaneously output SDI and HDMI, and monitoring can be done through the Accsoon SEE app.

The CineView Master 4K also boasts an 8K high-performance A/V processor, powered by DC input or NP-F batteries. It is compatible with Accsoon V-Mount battery adapter and features intelligent, quiet heat dissipation. Made with aerospace grade aluminum alloy, it also has a 1.05-inch full-color LCD display. This system offers a series of world firsts, including the first tri-band wireless video system, first 4K 60P Wi-Fi based video transmission system, and first Wi-Fi system with less than 25ms latency. With its ability to handle 4K 60P video, connect up to 5 devices, and use Accsoons innovative SeeMo technology for professional monitoring and streaming, the CineView Master 4K is a game changer for on-set video.

Soecification

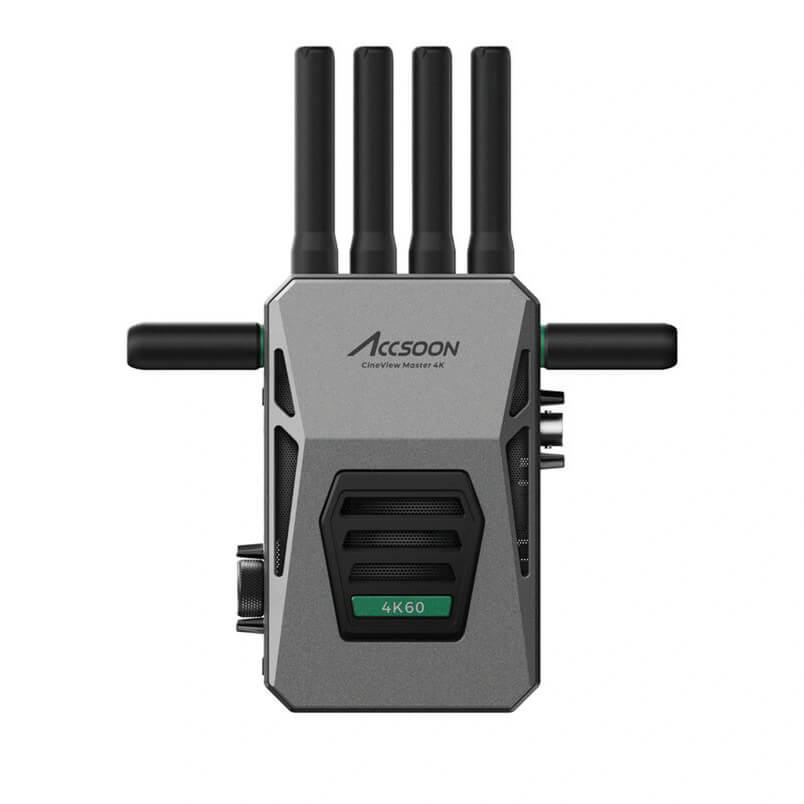

1TX TRANSMITTER
A/V Processor: 8K High Performance A/V Processor
Protocol: Proprietary RTMS 4.0 protocol developed by Accsoon
Video Input: HDMI, 3G SDI HDMI
Video Output: HDMI Loop-Out, USB Video Out (to iOS)
SDI Input Format: 1080p: 23.98/24/25/29.97/30/50/59.94/60fps Level A/B, 1080i: 50/59.94/60i
HDMI Input Format: 4K (3840*2160): 23.98/24/25/29.97/30/50/59.94/60p,
1080p: 23.98/24/25/29.97/30/50/59.94/60p
1080i: 50/59.94/60i
HDMI Loop-out Format: Identical to the HDMI video input
DC Port 5.5mmx2.1mm, center positive
DC Voltage: 7.4-16.8V
Battery: Compatible with NP-F550, NP-F750, NP-F970 battery
Power Consumption: 6.5W average (*Without powering other devices)
Audio: HDMI embedded, SDI embedded
Latency: 1080p < 25ms
4K < 35ms (Camera latency not included)
Transmission Range: ≥ 2.5 km (No obstacles, no interference)
Operating Environment Temperature: -10~40°C
Dimensions (Antennas Not Included): 130mm x 95mm x 32mm
Weight (Antennas Not Included): 322g

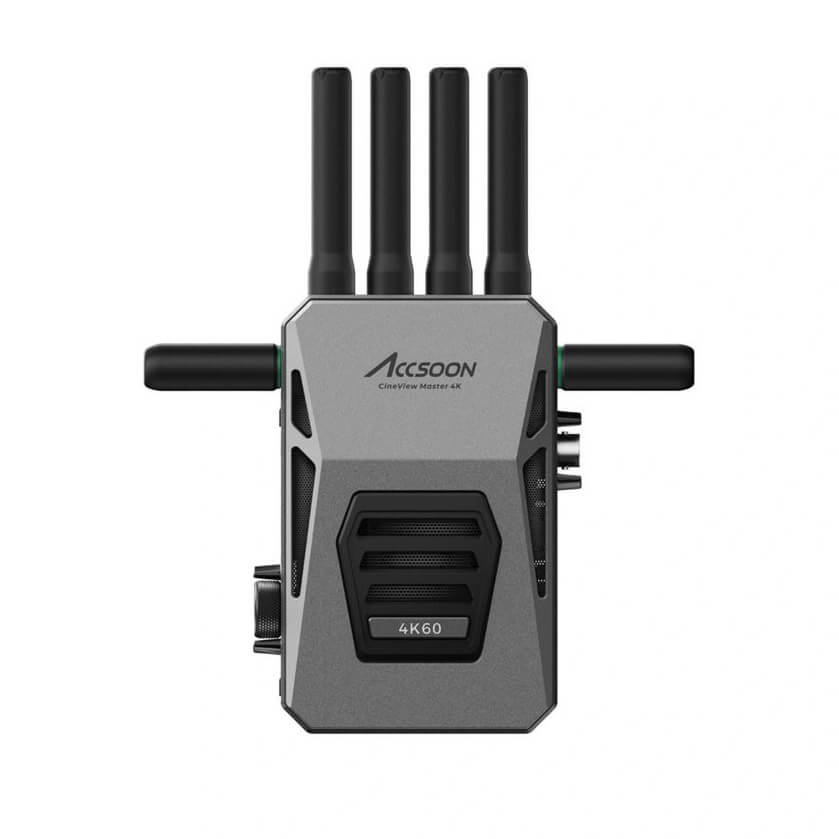

1RX Receiver
A/V Processor: 8K High Performance A/V Processor
Protocol: Proprietary RTMS 4.0 protocol developed by Accsoon
Video Output: HDMI3G SDI
SDI Output Format: 1080p: 24/25/30/50/60p Level A
1080i: 50/60i
HDMI Output Format: 4K (3840*2160): 24/25/30/50/60p
1080p: 24/25/30/50/60p
1080i: 50/60i
HDMI Loop-out Format: Identical to the HDMI video input
DC Port: 5.5mmx2.1mm, center positive
DC Voltage: 7.4-16.8V
Battery: Compatible with NP-F550, NP-F750, NP-F970 battery
Power Consumption: 5.0W average
Audio: HDMI embedded, SDI embedded
Latency: 1080p < 25ms
4K < 35ms(Camera latency not included)
Transmission Range: ≥ 2.5 km (No obstacles, no interference)
Operating Environment Temperature: -10~40°C
Dimensions (Antennas Not Included): 130mm x 95mm x 32mm
Weight (Antennas Not Included): 320g
